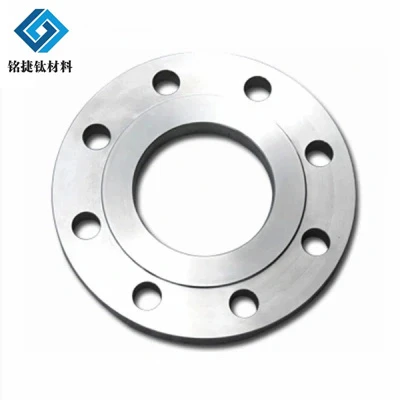

Titanium Qib 2 Slip On Flange
Khoom npe: Titanium grde 2 plam ntawm flange
Kev qhia tshwj xeeb: ASTM B381 / ASME SB381
Txuj: ANSI / ASME B16.5
Loj: 1/8 "NB-48" NB
Siab: 150 #
Phab ntsa thickness: SCH5S-SCHXXS
Khoom siv: Titanium thiab titanium alloys
Siab: 150 #
Cov txheej txheem: Forged thiab CNC Machined
Khoom Taw qhia
Khoom Description
Dab tsi yog titanium Qib 2 plam ntawm flange?
Titanium Qib 2 plam ntawm Flange yog ib feem ua los ntawm titanium lossis titanium alloy uas txuas cov kav dej rau cov raj thiab txuas mus rau qhov kawg ntawm cov yeeb nkab. Nws txoj kab uas hla sab hauv yog me ntsis loj dua li lub taub sab nraud ntawm cov yeeb nkab, thiab nws tuaj yeem muab tso ncaj qha rau ntawm cov yeeb nkab thaum lub sijhawm teeb tsa thiab kho los ntawm ob - sab vuam. Tsis zoo li cov welded flanges, titanium tiaj flanges muaj lub caj dab luv thiab tsis tas yuav tsum tau beveling, ua rau cov nqi qis dua thiab yooj yim dua installation.Nws cov yam ntxwv tseem ceeb muaj xws li:
1. Sliding tsim:Cov yeeb nkab tuaj yeem ua tau zoo -tuned nyob rau hauv lub flange sab hauv lub qhov, ua rau nws yooj yim rau nruab rau nruab.
2. Ob chav -sided vuam:fillet welding yuav tsum tau nqa tawm ntawm lub ntsej muag kawg ntawm flange thiab sab nrauv phab ntsa ntawm cov yeeb nkab kom nruj.
3. Kev siv siab ntau yam:Feem ntau siv nyob rau hauv nruab nrab thiab tsis tshua muaj xwm txheej ntawm PN6-PN40 (kwv yees . 150-600psi), ua raws li ASME B16.5 tus qauv2.
Lub hauv paus ntsiab lus ua haujlwm thiab cov txiaj ntsig tseem ceeb
Titanium Qib 2 plam ntawm flanges zoo them nyiaj rau kev ntxhov siab los ntawm thermal, nthuav dav, cog lus, lossis vibrationd los ntawm kev tso cai axial hloov ntawm cov kav dej. Piv txwv li, nyob rau hauv ib tug thermal network, thaum lub steel yeeb nkab nthuav nyob rau hauv lub tshav kub, qhov clearance ntawm titanium zawv zawg flange txo lub thrust ntawm lub ruaj ruaj. Nws qhov zoo yog feem ntau cuam tshuam hauv:
1. Yooj yim installation:haum rau qhov chaw- lub sijhawm txwv tsis pub muaj kev txiav cov kav dej.
2. Kev lag luam:Cov khoom siv tsawg dua, 30% -40% tus nqi ua haujlwm qis dua lub caj dab pob tw weld flange (raws li cov ntaub ntawv ntawm "Pipeline Engineering Manual").
3. Kev kho yooj yim:Kev tshuaj xyuas thaj tsam vuam yog intuitive, uas yooj yim rau kev txij nkawm tom qab.
Chemical Composition % ntawm Titanium Gr. 2 Slip On Flange
|
STANDARD |
CHEMICAL COMPOSITION (qhov hnyav %, ma√ lossis ntau yam) |
||||||||||
|
Qib |
UNS |
N |
C |
H |
Fe |
O |
Al |
V |
Pd |
Mo |
Ni |
|
Tsis muaj |
|||||||||||
|
GR 1 |
R50250 |
0.03 |
0.08 |
0.015 |
0.2 |
0.18 |
|||||
|
GR 2 |
R50400 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
|||||
|
GR 3 |
R50550 |
0.05 |
0.08 |
0.015 |
0.3 |
0.35 |
|||||
|
GR 4 |
R50700 |
0.05 |
0.08 |
0.015 |
0.5 |
0.4 |
|||||
|
GR 5 |
R56400 |
0.05 |
0.08 |
0.015 |
0.4 |
0.2 |
5.5-6.75 |
3.5-4.5 |
|||
|
GR 7 |
R52400 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
0.12-0.25 |
||||
|
GR 9 |
R56320 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5-3.5 |
2.0-3.0 |
|||
|
GR 12 |
R53400 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
0.2-0.4 |
0.6-0.9 |
|||
|
GR 23 |
R56401 |
0.03 |
0.08 |
0.0125 |
0.25 |
0.13 |
5.5-6.5 |
3.5-4.5 |
|||
Mechanical Properties of Titanium Gr. 2 Slip On Flange
|
STANDARD |
CHEMICAL COMPOSITION (qhov hnyav %, ma√ lossis ntau yam) |
MECHANICAL PROPERTIES (min) |
|||
|
Qib |
UNS |
Tensile |
Yield |
El. |
Liab. |
|
Tsis muaj |
Mpa |
Mpa |
% |
% |
|
|
GR 1 |
R50250 |
240 |
138 |
24 |
30 |
|
GR 2 |
R50400 |
345 |
275 |
20 |
30 |
|
GR 3 |
R50550 |
450 |
380 |
18 |
30 |
|
GR 4 |
R50700 |
550 |
483 |
15 |
25 |
|
GR 5 |
R56400 |
895 |
828 |
10 |
25 |
|
GR 7 |
R52400 |
345 |
275 |
20 |
30 |
|
GR 9 |
R56320 |
620 |
483 |
15 |
25 |
|
GR 12 |
R53400 |
483 |
345 |
18 |
25 |
|
GR 23 |
R56401 |
828 |
759 |
10 |
15 |
Cov ntawv thov ntawm titanium Gr2 Slip ntawm Flanges.
Titanium plam ntawm flanges yog dav siv nyob rau hauvpetrochemical, rojthiabgas, tsim hluav taws xob,loj kev thauj ua kua, tshuaj, tshuaj, pulp thiab ntawv, textilethiab lwm yam kev lag luam. Tag nrho peb cov titanium flanges yog tsim raws li cov qauv thoob ntiaj teb. Lub ntim ntawm titanium flanges yuav tsum xyuas kom meej tias lawv tsis puas thaum lub sij hawm thauj mus los. Thaum exporting, tus txheej txheem export ntim yog rooj plaub plywood. Tag nrho cov titanium flanges raug cim nrog lub hom, ntau tus naj npawb, qhov loj me, qib, thiab peb lub cim lag luam. Peb kuj lees txais cov cim kev cai ntawm titanium flanges.
Qib 1, 2, 3, thiab 4 titanium alloys yog tag nrho cov kev lag luam ntshiab titanium (tsawg kawg 99% titanium). Txhua qib muaj cov tshuaj sib txawv me ntsis, uas tuaj yeem cuam tshuam rau nws cov khoom siv kho tshuab thiab tsim muaj peev xwm. Plaub qib muaj qhov zoo sib xws corrosion. Titanium alloys yog hnav thiab corrosion-resistant. Nyob rau hauv feem ntau ib puag ncig, nws corrosion kuj yog siab dua li ntawm stainless hlau. Ntawm plaub qib kev lag luam ntshiab titanium (CP), Qib 2 titanium yog cov alloy ntawm kev xaiv rau feem ntau cov ntawv thov kev lag luam uas yuav tsum tau ua kom zoo ductility thiab corrosion kuj.
Tag nrho peb cov titanium flanges yog tsim raws li cov qauv thoob ntiaj teb. Lub ntim ntawm titanium flanges yuav tsum xyuas kom meej tias lawv tsis puas thaum lub sij hawm thauj mus los. Thaum exporting, tus txheej txheem export ntim yog rooj plaub plywood. Tag nrho cov titanium flanges raug cim nrog lub hom, ntau tus naj npawb, qhov loj me, qib, thiab peb lub cim lag luam. Peb kuj lees txais cov cim kev cai ntawm titanium flanges.
Kev sib piv nrog lwm hom flange
| Vuam txoj kev | Hom qauv | Titanium zawv zawg flange | Butt{0}}welding flange nrog caj dab |
| Muab ob npaug -sided fillet welding |
ASME B16.5 |
Muab ob npaug -sided fillet welding | Ib Sab Bevelling |
|
TS EN 1092-1 |
TS EN 1092-1 |
- |
Butt{0}}welding flange nrog caj dab |
Kev ntim khoom thiab xa khoom ntawm Titanium Qib 2 Slip ntawm Flange
Kev ntim khoom
Kev xaiv cov khoom ntim
Anti-kev kho corrosion thiab cov ntaub ntawv Cushioning
Thaum qhov hnyav ntawm ib qho titanium flange> 25kg, lub phaj hauv qab ntawm lub thawv ntoo yuav tsum tau ua los ntawm 25mm tuab plywood, thiab lub hnab ntim lub log yuav tsum tau nruab nrog 18mm lub phaj.
Qhov sib txawv ntawm lub flange thiab lub thawv yog sab laug 5 hli ntawm ib sab los sau cov honeycomb cardboard kom disperse lub siab.
Kev tiv thaiv - seismic ntsuas
Hauv qab ntawm lub flange yuav tsum tau nruab nrog roj hmab shock absorbing pads, thiab plaub lub ces kaum ntawm lub thawv yuav tsum tau tiv thaiv los ntawm ua npuas ncauj - qhwv cov ces kaum kom tsis txhob muaj kev sib tsoo thaum lub sij hawm kev thauj mus los.
Lus Cim: Titanium flanges yuav tsum tau ntxuav ua ntej kev thauj mus los kom tshem tawm cov roj stains thiab txiav cov kua dej seem.
Nco tseg: Peb muab kev kho tus kheej
